Ring Binder Mechanism, Q-Shape

The edges of the Q-shape ring binder mechanism are straight on both sides, utilizing the full capacity. 2 ring and 4 ring options are available.

  • Ring Binder Mechanism, Q-Shape
  • Ring Binder Mechanism, Q-Shape
2 rings binder mechanism, Q ring, 123mm total length
Item No. Ring Distance Total Height Inner Height Outer Width Hole Distance Total Length Width of Mechanism
PQ123-2-30/20 80/80 39.5 31 3 27.4 114 123 20
2 rings binder mechanism, Q ring, 130mm total length
Item No. Ring Distance Total Height Inner Height Outer Width Hole Distance Total Length Width of Mechanism
PQ133-2-30/26 80/80 43.5 33.8 31 122 130 26
PQ133-2-40/26 80/80 51.5 41.8 34.5 122 130 26
PQ133-2-65/36 80/80 82.3 69.5 42 121 131 36
PQ133-2-100/36 80/80 111.8 98.2 40.5 121 131 36

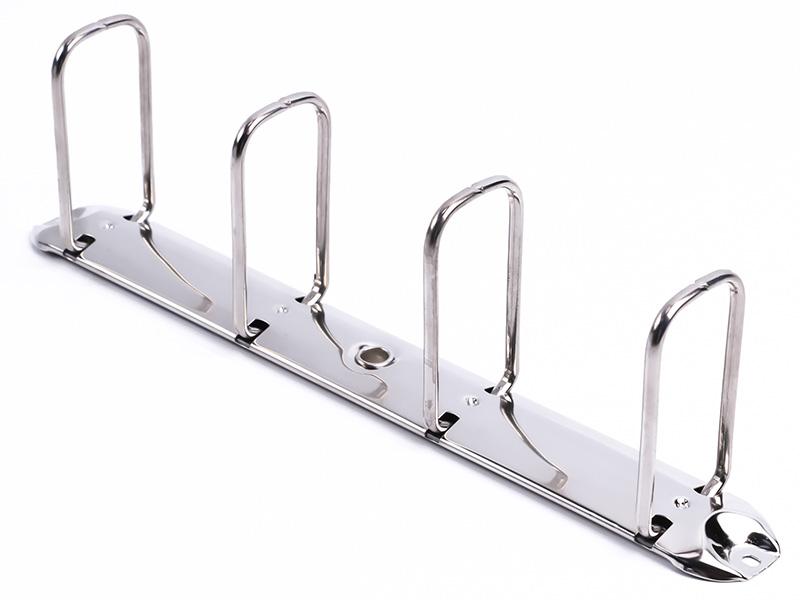

4 rings binder mechanism, Q ring, 290mm total length
Item No. Ring Distance Total Height Inner Height Outer Width Hole Distance Total Length Width of Mechanism
PQ292-4-70/36 80/80/80 82.5 69.5 41 285 295 36
PQ292-4-80/36 80/80/80 93 80 40 285 295 36
PQ292-4-100/36 80/80/80 11.8 98.2 40.5 282 291 36
